Name: MSCB Mega Slim Coupler BLACK
SKU: 597031

Product Details ＋

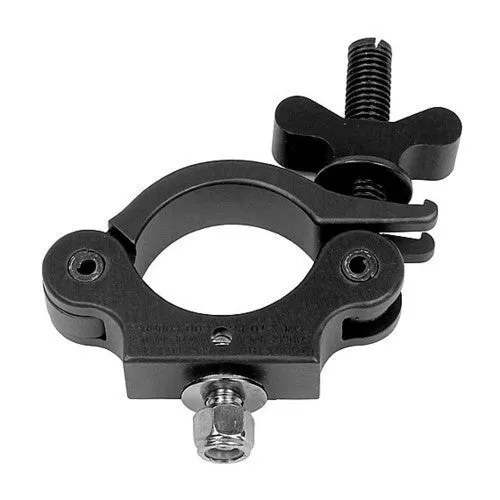

MSCB Mega Slim Coupler BLACK

ALL BULBS will beat "ALL" competitors pricing! ….... Call 516.766.2266

MSCB Mega Slim Coupler BLACK Light Source

The Mega Slim Coupler is a lower profile option for smaller light fixtures. It is half the size of our standard Mega-Coupler and weighs 30% less; yet fits the same as the Mega-Coupler.

The Mega Slim will fasten from 1-1/4" pipe (1.66 OD) to 2.050 OD Truss Tube. It has a wide wing nut for easy fastening of the coupler to the pipe or tube as well as a hex pocket for 3/8" bolt. Includes 3/8″×1″ zinc plated bolt with nylock nut and spring washer. The bolt fits flush into the Coupler.

The Mega Slim Coupler is also available with a 3/8" or 1/2" Flat Head Countersunk Bolt.

Download (PDF)

Minimum Size 1.25" pipe, 1.66 OD pipe
Maximum Size 1.5" pipe, 1.90 OD pipe, 2.050" OD Truss Tube
Working Load Limit 500 lbs
Hardware: 3/8″ × 1″ Hex Cap Screw
Belleville Washer
Nylock Nut
Weight 0.65 lbs.
Case Quantities 24

Order Codes

MSCB Mega-Slim Coupler with 3/8″ Hex Head Bolt, Black

MSCB-NN Mega-Slim Coupler, with 3/8" Hex Head Bolt, Nylock Nut, Black

MSCB-SS Mega-Slim Coupler with 3/8" Hex Head Bolt, Stainless Steel Hardware, Black

MSCB2 Mega-Slim Coupler with 3/8" x 2" Long Hex Head Bolt, Black

MSCB2-NN Mega-Slim Coupler with 3/8" x 2" Long Hex Head Bolt with Nylock Nut, Black

MSCM Mega-Slim Coupler with 3/8″ Hex Head Bolt, Silver

MSCM-NN Mega-Swivel Coupler 3/8" Hex Head Bolt with Nylock Nut, Silver

MSCM2 Mega-Slim Coupler with 3/8" x 2" Long Hex Head Bolt, Silver

MSCM2-NN Mega-Slim Coupler with 3/8" x 2" Long Hex Head Bolt with Nylock Nut, Silver

MSCMSS Mega-Slim Couper with 3/8" Hex Head Bolt, Stainless Steel Hardware, Silver

MSCW Mega-Slim Coupler 3/8" Hex Head Bolt, White Powder Coat

MSCW2 Mega-Slim Coupler with 3/8" x 2" Long Hex Head Bolt, White Powder Coat

Order Codes

MSCB Mega Slim Coupler BLACK
